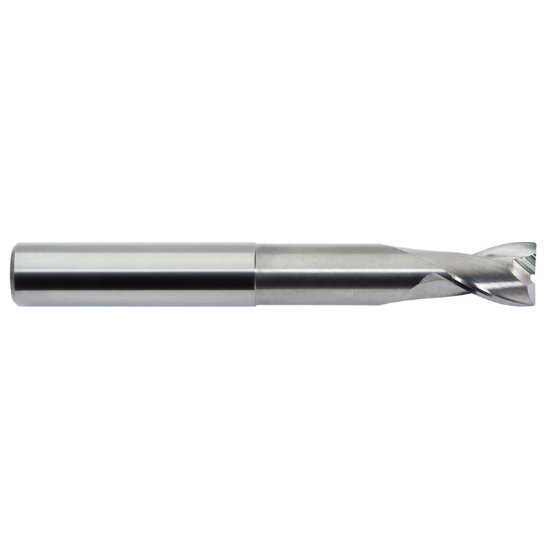

Picture of M.A. Ford 13550001NR.080 Dia 1/2 SH 0.50 LOC 0.6250 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0800 2.03mm TuffCut® AL

M.A. Ford 13550001NR.080 Dia 1/2 SH 0.50 LOC 0.6250 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0800 2.03mm TuffCut® AL

Part Number: MAF14759 0.500 x 0.500 x 0.625 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240764
Vendor: Sussex Tool and Supply
$96.28
M.A. FORD 13550001NR.080 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0800 2.03MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0800 2.03MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 2.1250 53.98MM
