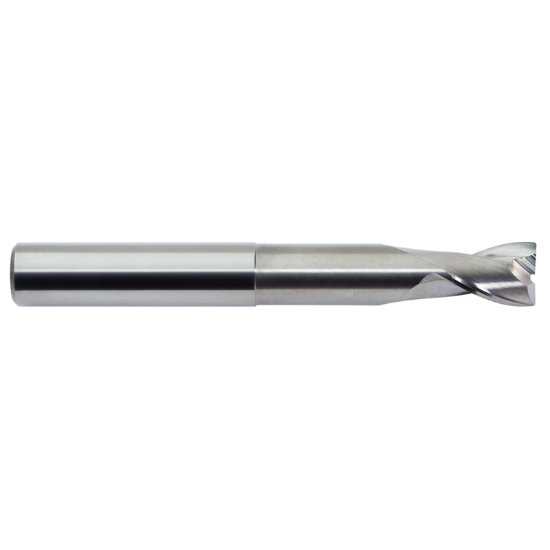

Picture of M.A. Ford 13547209N5 Dia 12mm SH 0.4724 LOC 0.5510 OAL4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1575 4.00mm TuffCut® AL

M.A. Ford 13547209N5 Dia 12mm SH 0.4724 LOC 0.5510 OAL4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1575 4.00mm TuffCut® AL

Part Number: MAF96683 0.472 x 0.472 x 0.551 x 4.331

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240747
Vendor: Sussex Tool and Supply
$83.13
M.A. FORD 13547209N5 Standard Helix End Mill Carbide Uncoated Corner Radius 0.1575 4.00MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.5510 14.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1575 4.00MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 2.4409 62.00MM
