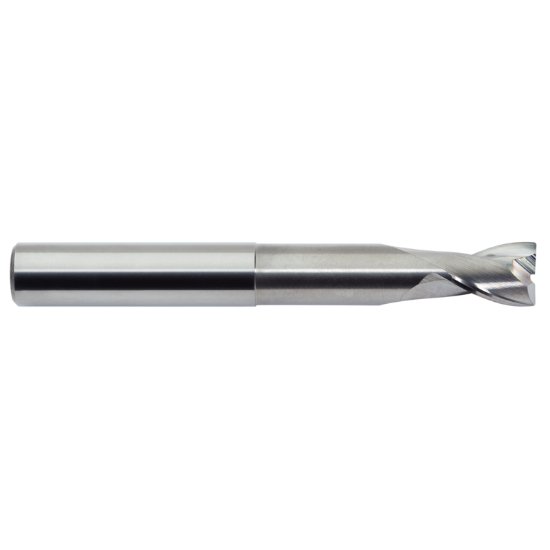

Picture of M.A. Ford 13539371NCE Dia 10mm SH 0.3937 LOC 0.4724 OAL2.9921 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm TuffCut® AL

M.A. Ford 13539371NCE Dia 10mm SH 0.3937 LOC 0.4724 OAL2.9921 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm TuffCut® AL

Part Number: MAF13434 0.394 x 0.394 x 0.472 x 2.992

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240731
Vendor: Sussex Tool and Supply
$102.46
M.A. FORD 13539371NCE Standard Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.9921 76.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 1.3386 34.00MM
