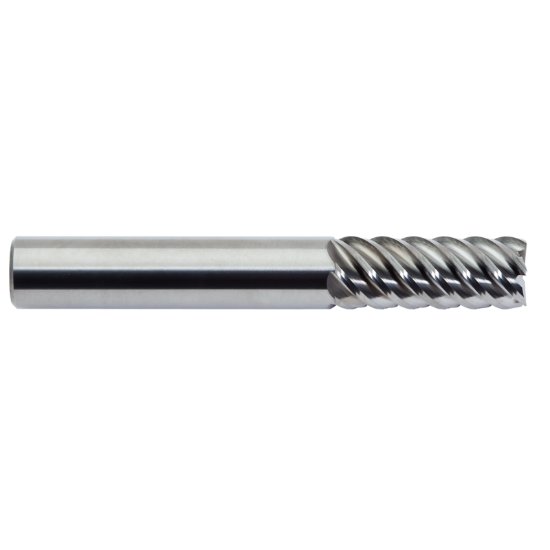

Picture of M.A. Ford 11337500R.020 Dia 3/8 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm TuffCut® SS

M.A. Ford 11337500R.020 Dia 3/8 SH 0.3750 LOC 0.8750 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm TuffCut® SS

Part Number: MAF76930 0.375 x 0.375 x 0.875 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240455
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 11337500R.020 High Helix End Mill Carbide Uncoated Corner Radius 0.0200 0.51MM Standard Flute Flutes 6 Single End TuffCut® SS Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 6
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Helix Angle 53
Center Cutting Center Cutting
