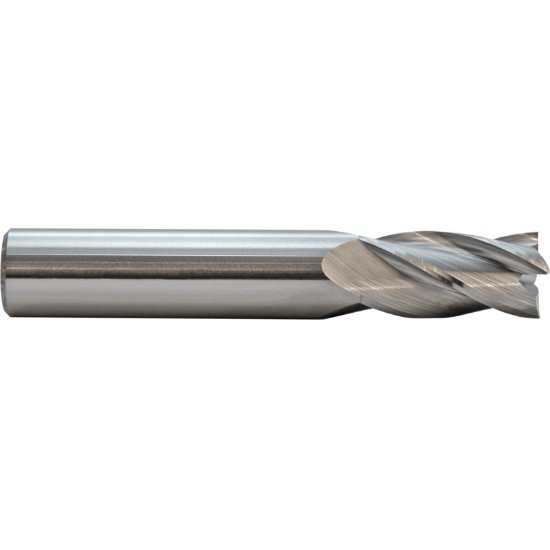

Picture of M.A. Ford 11198431C Dia 25mm Sh 0.9843 Loc 1.5748 Oal4.0157 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius0.0197 0.50mm Tuffcut® Gp

M.A. Ford 11198431C Dia 25mm Sh 0.9843 Loc 1.5748 Oal4.0157 End Mill Standard Flute Standard Helix Carbide Ticn Single End Corner Radius0.0197 0.50mm Tuffcut® Gp

Part Number: MAF10154 0.984 x 0.984 x 1.575 x 4.016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1076779
Vendor: Sussex Tool and Supply
$325.11
M.A. FORD 11198431C Standard Helix End Mill Carbide TiCN Corner Radius 0.0197 0.50MM Standard Flute Flutes 4 Single End TuffCut® GP Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TICN
Mach Side Connection Size 0.9843 25.00MM
Overall Length 4.0157 102.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 4
Tool Dia 0.9844 25.00MM - 63/64
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.5748 40.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
