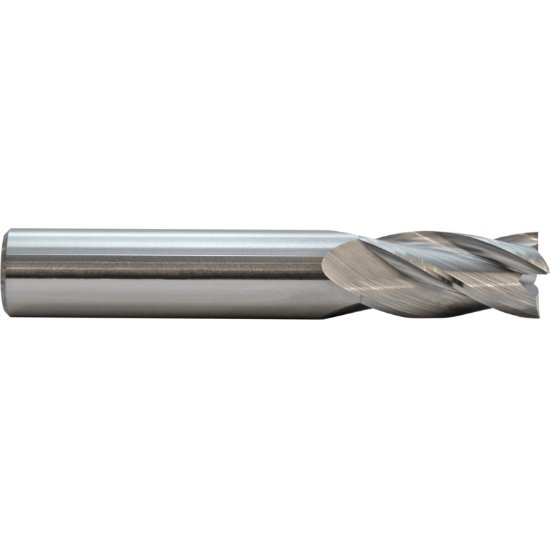

Picture of M.A. Ford 11156250R.015 Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm TuffCut® GP

M.A. Ford 11156250R.015 Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm TuffCut® GP

Part Number: MAF76922 0.563 x 0.563 x 1.125 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240374
Vendor: Sussex Tool and Supply
$109.11
M.A. FORD 11156250R.015 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM Standard Flute Flutes 4 Single End TuffCut® GP Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.5625 14.29MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Tool Dia 0.5625 14.29MM - 9/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.1250 28.58MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
