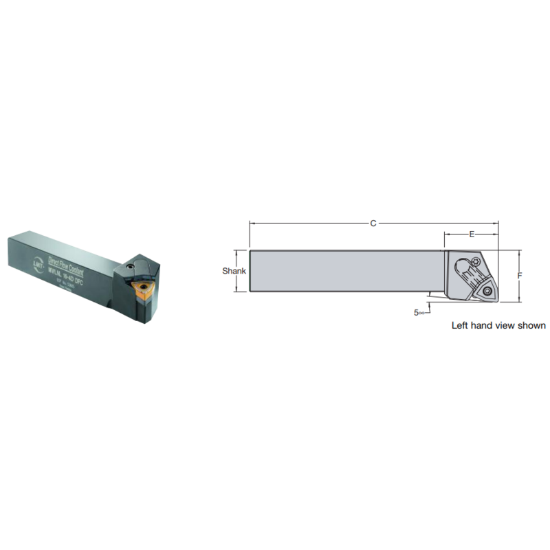

Picture of LMT FETTE MDJNR 12-3B DFC Turning Stick Tool 55.0° 0.750 Tool

LMT FETTE MDJNR 12-3B DFC Turning Stick Tool 55.0° 0.750 Tool

ANSI: MDJNR 12-3B DFC

ISO: MDJNR 12-3B DFC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT53669
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Inter/Extern External
Seat/Nest IDSN322
Insert Style DN
Coolant Thru Yes
Fasteners & Connectors
Lock Pin NL34L
