Picture of LMT FETTE MDJNL 12-3B DFC Turning Stick Tool 55.0° 0.750 Tool

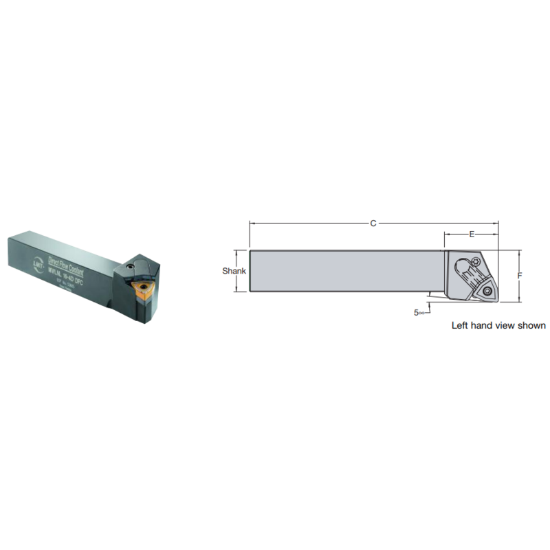

LMT FETTE MDJNL 12-3B DFC Turning Stick Tool 55.0° 0.750 Tool

ANSI: MDJNL 12-3B DFC

ISO: MDJNL 12-3B DFC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT53666
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Machine Side Connection Type Stick Tool
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Lead Angle 93°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Coolant Thru Yes
Seat/Nest IDSN322
Hand R/L Left
Inter/Extern External
Fasteners & Connectors
Lock Pin NL34L
