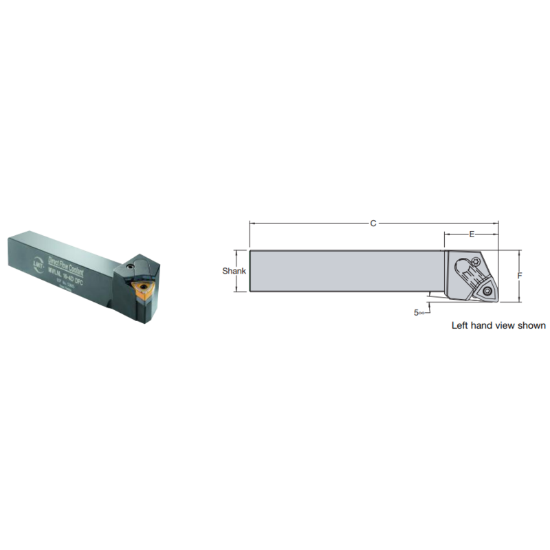

Picture of LMT FETTE MCLNL 20-5D DFC Turning Stick Tool 80.0° 1.250 Tool

LMT FETTE MCLNL 20-5D DFC Turning Stick Tool 80.0° 1.250 Tool

ANSI: MCLNL 20-5D DFC

ISO: MCLNL 20-5D DFC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT55965
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16 "54"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Lead Angle 95°
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru Yes
Seat/Nest ICSN533
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
Inter/Extern External
Fasteners & Connectors
Lock Pin NL58
