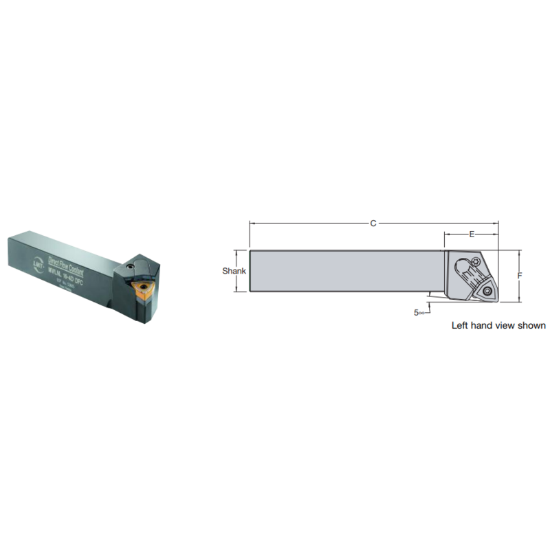

Picture of LMT FETTE MCLNL 16-4D DFC Turning Stick Tool 80.0° 1.000 Tool

LMT FETTE MCLNL 16-4D DFC Turning Stick Tool 80.0° 1.000 Tool

ANSI: MCLNL 16-4D DFC

ISO: MCLNL 16-4D DFC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT53663
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 95°
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Seat/Nest ICSN432
Hand R/L Left
Coolant Thru Yes
Insert Style CN
Inter/Extern External
Fasteners & Connectors
Lock Pin NL46
