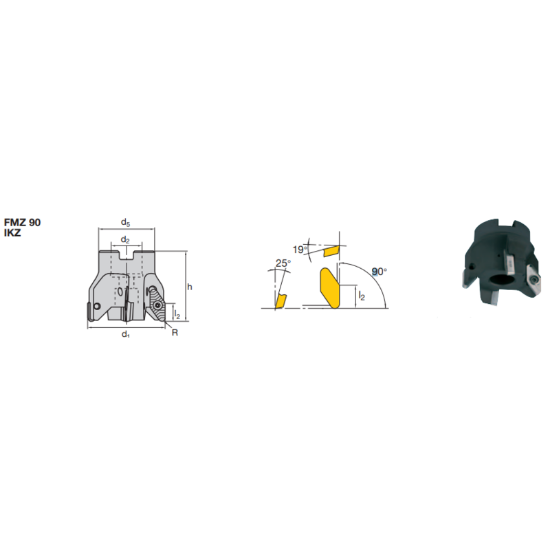

Picture of LMT FETTE FMZ90 V22.300ABF-I Milling 90.0°, Face Mill Cutter 3.000 Cutter Diameter

LMT FETTE FMZ90 V22.300ABF-I Milling 90.0°, Face Mill Cutter 3.000 Cutter Diameter

ANSI: FMZ90 V22.300ABF-I

ISO: FMZ90 V22.300ABF-I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT0054781
Delivery date: 3-5 days
$384.64
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 11 "21"
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.5900
Cutter Dia 3.0000 76.20MM
Overall Len 2.1200 53.85MM
Corner Radius 0.1200 3.05MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VC
