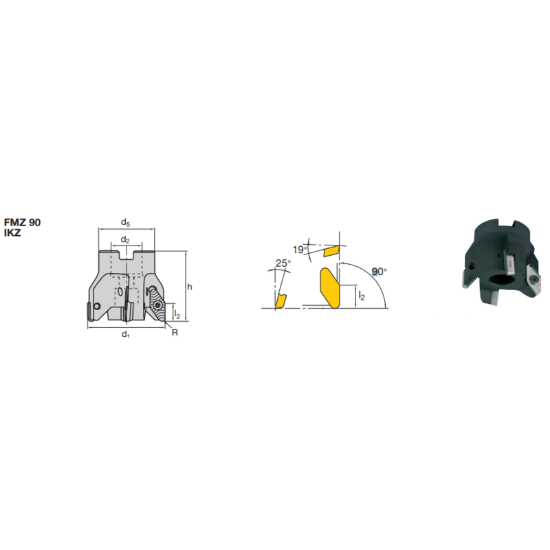

Picture of LMT FETTE FMZ90 V22.300ABE-I Milling 90.0°, Face Mill Cutter 3.000 Cutter Diameter

LMT FETTE FMZ90 V22.300ABE-I Milling 90.0°, Face Mill Cutter 3.000 Cutter Diameter

ANSI: FMZ90 V22.300ABE-I

ISO: FMZ90 V22.300ABE-I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950297
Delivery date: 3-5 days
$612.16
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Slot Milling, Face Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Corner Radius 0.1200 3.05MM
Tool Material Steel
Insert Size Ic 11 "21"
Cutter Dia 3.0000 76.20MM
Depth Of Cut Max 0.5900
Overall Len 2.1200 53.85MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
