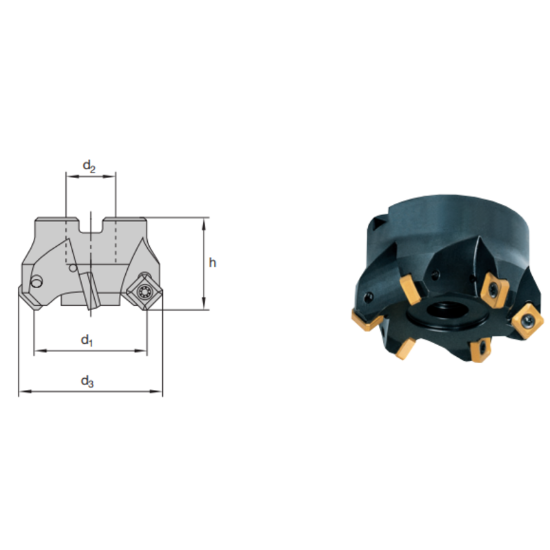

Picture of LMT FETTE FMT45 S12.400AD Milling 45.0°, Face Mill Cutter 4.000 Cutter Diameter

LMT FETTE FMT45 S12.400AD Milling 45.0°, Face Mill Cutter 4.000 Cutter Diameter

ANSI: FMT45 S12.400AD

ISO: FMT45 S12.400AD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950050
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Double negative insert position with high positive rake angles – Smooth and low noise milling – Inserts with large thickness, rigid cross section – Large surface contact area of the insert – For plunge and heavy die sinking operations Smooth Cutting with minimal noise Double Thick inserts with rigid cross section For Cawity milling and heavy die sinking operations

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Insert Type Negative
Shipping State Illinois
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.9700 50.04MM
Depth Of Cut Max 0.2800
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cut Dia Max 4.5600 115.82MM
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
