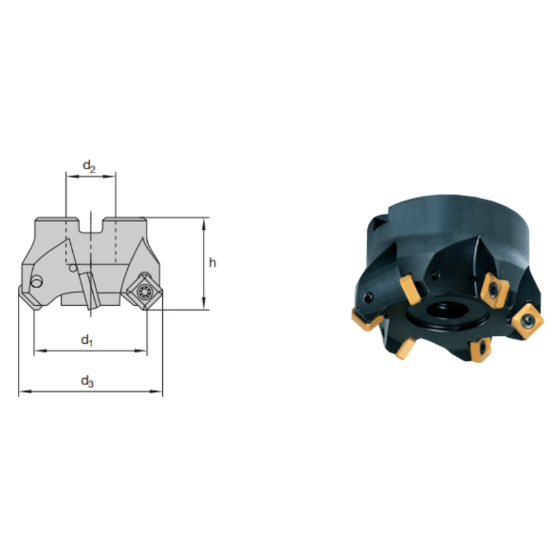

Picture of LMT FETTE FMT45 S12.300AB Milling 45.0°, Face Mill Cutter 3.000 Cutter Diameter

LMT FETTE FMT45 S12.300AB Milling 45.0°, Face Mill Cutter 3.000 Cutter Diameter

ANSI: FMT45 S12.300AB

ISO: FMT45 S12.300AB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950048
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Double negative insert position with high positive rake angles – Smooth and low noise milling – Inserts with large thickness, rigid cross section – Large surface contact area of the insert – For plunge and heavy die sinking operations Smooth Cutting with minimal noise Double Thick inserts with rigid cross section For Cawity milling and heavy die sinking operations

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 3.5600 90.42MM
Overall Len 1.9700 50.04MM
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.2800
Flutes/Inserts 5
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
