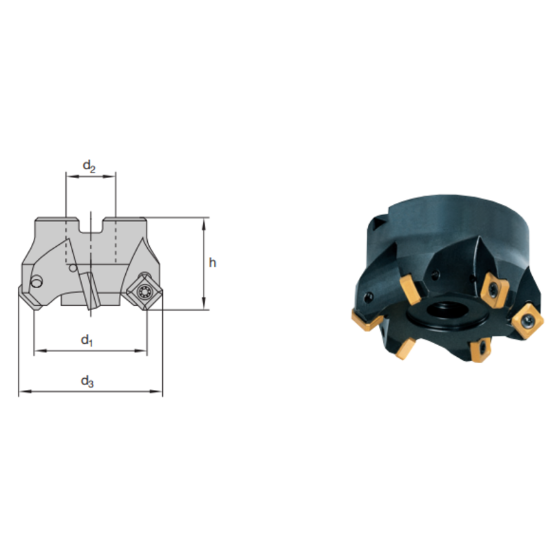

Picture of LMT FETTE FMT45 S12.250AA Milling 45.0°, Face Mill Cutter 2.500 Cutter Diameter

LMT FETTE FMT45 S12.250AA Milling 45.0°, Face Mill Cutter 2.500 Cutter Diameter

ANSI: FMT45 S12.250AA

ISO: FMT45 S12.250AA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950046
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Double negative insert position with high positive rake angles – Smooth and low noise milling – Inserts with large thickness, rigid cross section – Large surface contact area of the insert – For plunge and heavy die sinking operations Smooth Cutting with minimal noise Double Thick inserts with rigid cross section For Cawity milling and heavy die sinking operations

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Milling
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.2800
Cut Dia Max 3.0600 77.72MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
