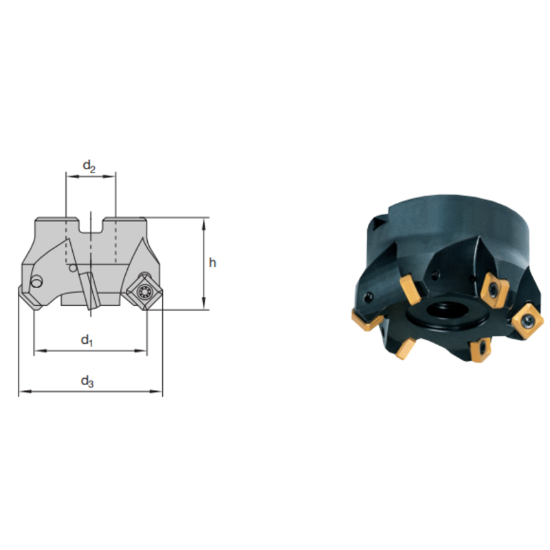

Picture of LMT FETTE FMT45 S12.200AA Milling 45.0°, Face Mill Cutter 2.000 Cutter Diameter

LMT FETTE FMT45 S12.200AA Milling 45.0°, Face Mill Cutter 2.000 Cutter Diameter

ANSI: FMT45 S12.200AA

ISO: FMT45 S12.200AA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950044
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Double negative insert position with high positive rake angles – Smooth and low noise milling – Inserts with large thickness, rigid cross section – Large surface contact area of the insert – For plunge and heavy die sinking operations Smooth Cutting with minimal noise Double Thick inserts with rigid cross section For Cawity milling and heavy die sinking operations

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing, Finishing
Package Size 1
Application Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.5600 65.02MM
Insert Size Ic 12
Depth Of Cut Max 0.2800
Flutes/Inserts 4
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
