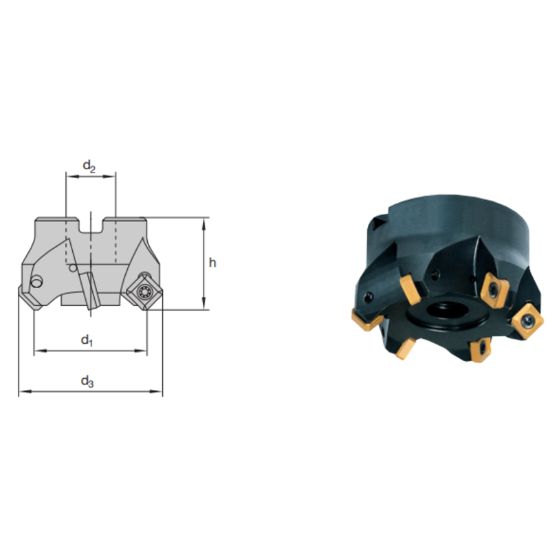

Picture of LMT FETTE FMT45 S12.1000AF Milling 45.0°, Face Mill Cutter 10.00 Cutter Diameter

LMT FETTE FMT45 S12.1000AF Milling 45.0°, Face Mill Cutter 10.00 Cutter Diameter

ANSI: FMT45 S12.1000AF

ISO: FMT45 S12.1000AF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950206
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Double negative insert position with high positive rake angles – Smooth and low noise milling – Inserts with large thickness, rigid cross section – Large surface contact area of the insert – For plunge and heavy die sinking operations Smooth Cutting with minimal noise Double Thick inserts with rigid cross section For Cawity milling and heavy die sinking operations

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling
Package Size 1
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Insert Type Negative
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 2.5000 63.50MM
Depth Of Cut Max 0.2800
Cutter Dia 10.0000 254.00MM
Flutes/Inserts 16
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.4800 62.99MM
Cut Dia Max 10.6000 269.24MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
