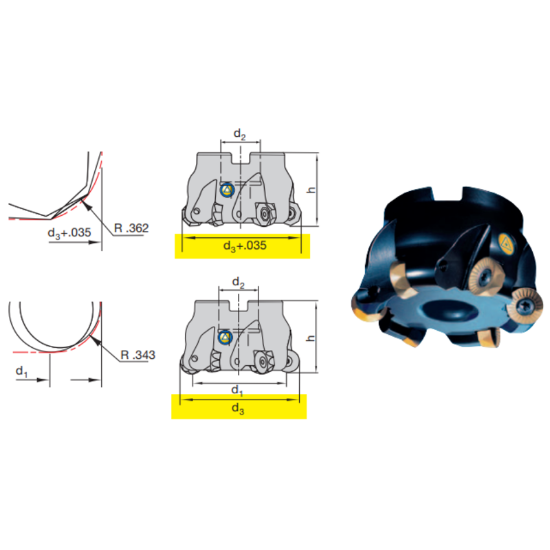

Picture of LMT FETTE FCTXX R16-400AD Milling 45.0°, Button Cutter Milling Cutter 4.000 Cutter Diameter

LMT FETTE FCTXX R16-400AD Milling 45.0°, Button Cutter Milling Cutter 4.000 Cutter Diameter

ANSI: FCTXX R16-400AD

ISO: FCTXX R16-400AD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950274
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

The genuine plus points of the Twincut Vario: – Absolutely silent running – Power requirements cut by 30% – High cutting efficiency increases output and profitability – Can be used with relativeley low-power machines – Especially suited to unstable machining and location conditions – Machine (spindle bearing) and tool friendly – Better milling dynamics, lower momentum – Offset cutting edges produce optimal chip size – Optimal chip cross-section and more acute entry angle (�) – Better utilization of cutting edges

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.9700 50.04MM
Flutes/Inserts 10
Cutter Dia 4.0000 101.60MM
Tool Material Steel
Insert Size Ic 16, 06
Cut Dia Max 4.7300 120.14MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Insert Style RC,OC
