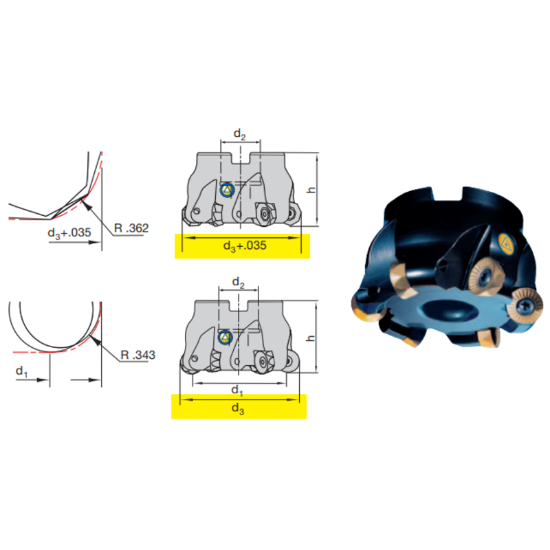

Picture of LMT FETTE FCTXX R16-300AB Milling 45.0°, Button Cutter Milling Cutter 3.000 Cutter Diameter

LMT FETTE FCTXX R16-300AB Milling 45.0°, Button Cutter Milling Cutter 3.000 Cutter Diameter

ANSI: FCTXX R16-300AB

ISO: FCTXX R16-300AB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950270
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

The genuine plus points of the Twincut Vario: – Absolutely silent running – Power requirements cut by 30% – High cutting efficiency increases output and profitability – Can be used with relativeley low-power machines – Especially suited to unstable machining and location conditions – Machine (spindle bearing) and tool friendly – Better milling dynamics, lower momentum – Offset cutting edges produce optimal chip size – Optimal chip cross-section and more acute entry angle (�) – Better utilization of cutting edges

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Round Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 1.9700 50.04MM
Flutes/Inserts 8
Cutter Dia 3.0000 76.20MM
Insert Size Ic 06, 16
Cut Dia Max 3.7300 94.74MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style RC,OC
Insert Shape/Cutter Pocket Shape Multi
