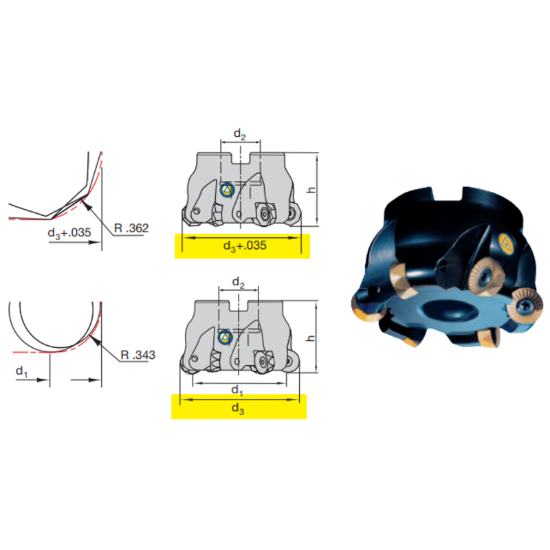

Picture of LMT FETTE FCTXX R16-250AA Milling 45.0°, Button Cutter Milling Cutter 2.500 Cutter Diameter

LMT FETTE FCTXX R16-250AA Milling 45.0°, Button Cutter Milling Cutter 2.500 Cutter Diameter

ANSI: FCTXX R16-250AA

ISO: FCTXX R16-250AA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950273
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

The genuine plus points of the Twincut Vario: – Absolutely silent running – Power requirements cut by 30% – High cutting efficiency increases output and profitability – Can be used with relativeley low-power machines – Especially suited to unstable machining and location conditions – Machine (spindle bearing) and tool friendly – Better milling dynamics, lower momentum – Offset cutting edges produce optimal chip size – Optimal chip cross-section and more acute entry angle (�) – Better utilization of cutting edges

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16, 06
Overall Len 1.9700 50.04MM
Flutes/Inserts 6
Cut Dia Max 3.2300 82.04MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Insert Style RC,OC
