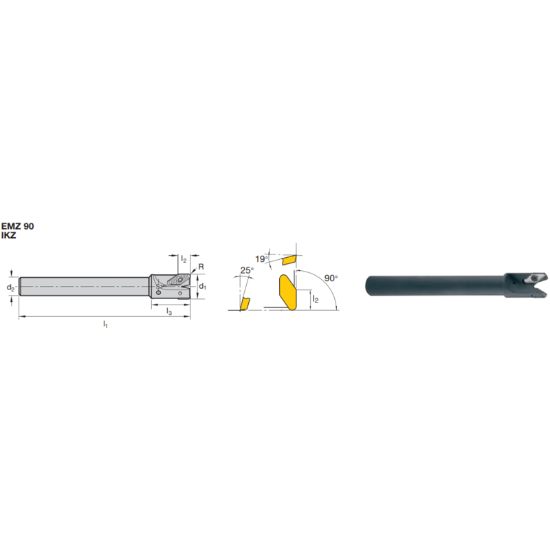

Picture of LMT FETTE EMZ90 V16.150SC-I Milling 90.0°, End Mill Milling Cutter 1.500 Cutter Diameter

LMT FETTE EMZ90 V16.150SC-I Milling 90.0°, End Mill Milling Cutter 1.500 Cutter Diameter

ANSI: EMZ90 V16.150SC-I

ISO: EMZ90 V16.150SC-I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT0054295
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 8.0000 203.20MM
Corner Radius 0.0500 1.27MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Neck Length 2.0000 50.80MM
Depth Of Cut Max 0.5300
Cutting & Machining Properties
Insert Style VP
Insert Shape/Cutter Pocket Shape Other
