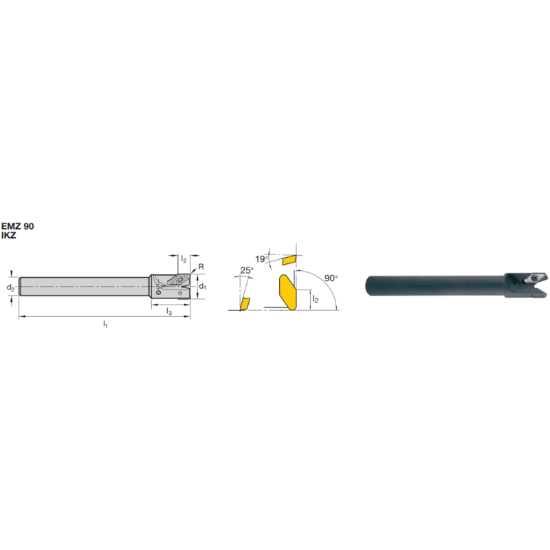

Picture of LMT FETTE EMZ90 V16.125WC-I Milling 90.0°, End Mill Milling Cutter 1.250 Cutter Diameter

LMT FETTE EMZ90 V16.125WC-I Milling 90.0°, End Mill Milling Cutter 1.250 Cutter Diameter

ANSI: EMZ90 V16.125WC-I

ISO: EMZ90 V16.125WC-I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT0054287
Delivery date: 3-5 days
$215.24
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.5300
Neck Length 2.0000 50.80MM
Flutes/Inserts 2
Corner Radius 0.0500 1.27MM
Tool Material Steel
Overall Len 4.2800 108.71MM
Cutting & Machining Properties
Insert Style VP
Insert Shape/Cutter Pocket Shape Other
