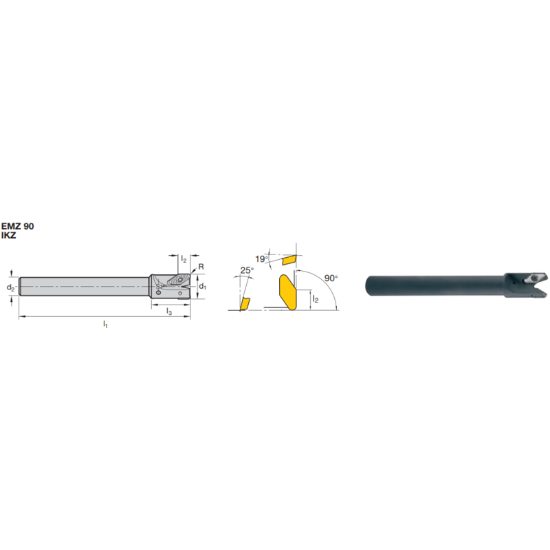

Picture of LMT FETTE EMZ90 V16.125SB-I Milling 90.0°, End Mill Milling Cutter 1.250 Cutter Diameter

LMT FETTE EMZ90 V16.125SB-I Milling 90.0°, End Mill Milling Cutter 1.250 Cutter Diameter

ANSI: EMZ90 V16.125SB-I

ISO: EMZ90 V16.125SB-I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT0054294
Delivery date: 3-5 days
$485.40
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 8.0000 203.20MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Neck Length 2.0000 50.80MM
Flutes/Inserts 2
Corner Radius 0.0500 1.27MM
Tool Material Steel
Depth Of Cut Max 0.5300
Cutting & Machining Properties
Insert Style VP
Insert Shape/Cutter Pocket Shape Other
