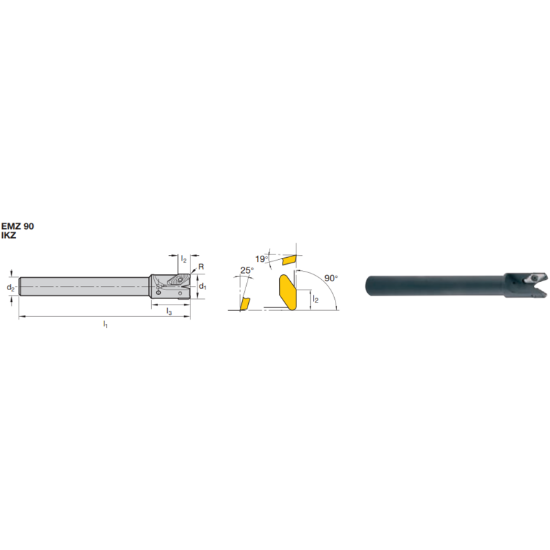

Picture of LMT FETTE EMZ90 V16.100SB-I Milling 90.0°, End Mill Milling Cutter 1.000 Cutter Diameter

LMT FETTE EMZ90 V16.100SB-I Milling 90.0°, End Mill Milling Cutter 1.000 Cutter Diameter

ANSI: EMZ90 V16.100SB-I

ISO: EMZ90 V16.100SB-I

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950291
Delivery date: 3-5 days
$372.33
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Side Milling, Face Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0500 1.27MM
Tool Material Steel
Insert Size Ic 16
Neck Length 1.5800 40.13MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Depth Of Cut Max 0.5300
Overall Len 7.8800 200.15MM
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style VP
Insert Shape/Cutter Pocket Shape Other
