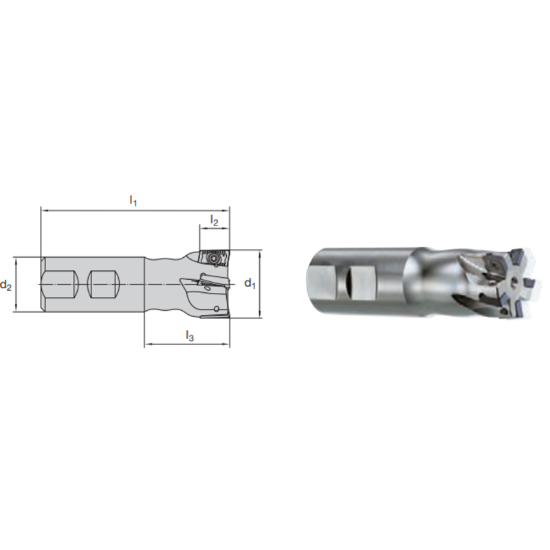

Picture of LMT FETTE EMU90A17.150GIF Milling 90.0°, End Mill Milling Cutter 1.500 Cutter Diameter

LMT FETTE EMU90A17.150GIF Milling 90.0°, End Mill Milling Cutter 1.500 Cutter Diameter

ANSI: EMU90A17.150GIF

ISO: EMU90A17.150GIF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950357
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 4
Depth Of Cut Max 0.6700
Tool Material Steel
Overall Len 6.0000 152.40MM
Neck Length 1.7200 43.69MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Insert Size Ic 17
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style AD
Insert Shape/Cutter Pocket Shape Other
