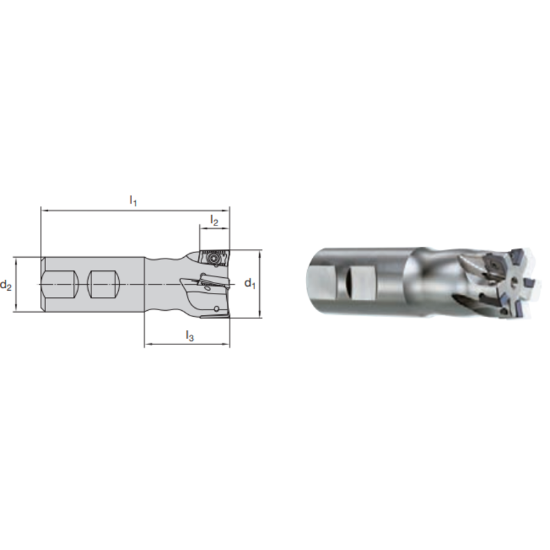

Picture of LMT FETTE EMU90 A17 . 100WEI Milling Cutter 90.0°

LMT FETTE EMU90 A17 . 100WEI Milling Cutter 90.0°

ANSI: EMU90 A17 . 100WEI

ISO: EMU90 A17 . 100WEI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1950345
Delivery date: 3-5 days
$315.76
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Made In USA No
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Neck Length 1.7200 43.69MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 2
Overall Len 4.0000 101.60MM
Insert Size Ic 17
Depth Of Cut Max 0.6700
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AD
Insert Shape/Cutter Pocket Shape Other
