  • LMT FETTE 9117765 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

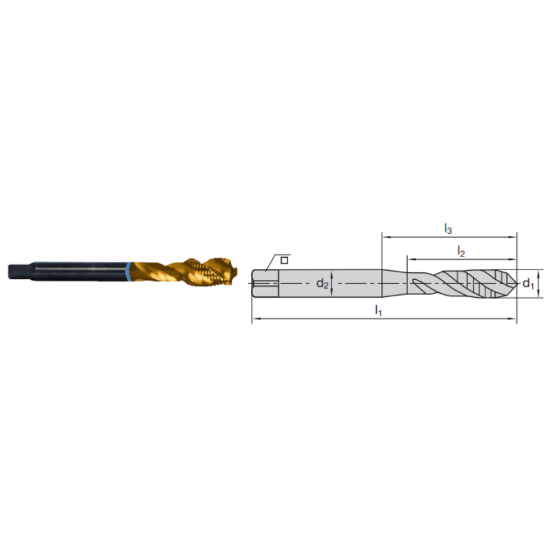

Picture of LMT FETTE 9117765 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9117765 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9117765
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DINSI
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tool Material Steel
Tap Square 0.3600
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Thread Size 5/8"
Thread Limit 3B
Thread Type NF/UNF/UNEF
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
