  • LMT FETTE 9117761 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

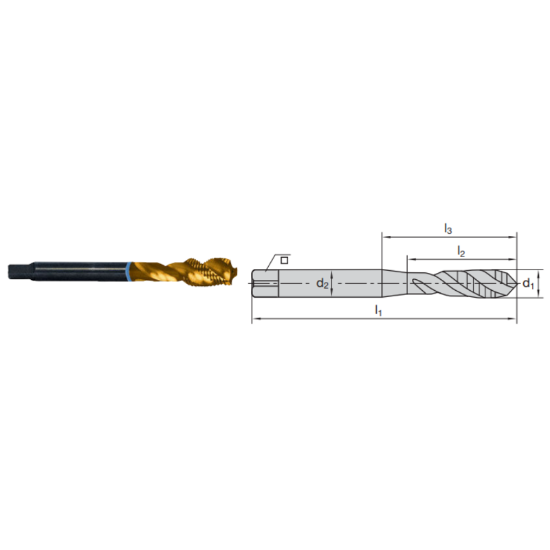

Picture of LMT FETTE 9117761 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9117761 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9117761
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Coating TiCN +
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 3B
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Overall Len 3.9370 100.00MM
Thread Size 9/16"
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tap Square 0.3220
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Thread Type NF/UNF/UNEF
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Medical Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
