  • LMT FETTE 9116578 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

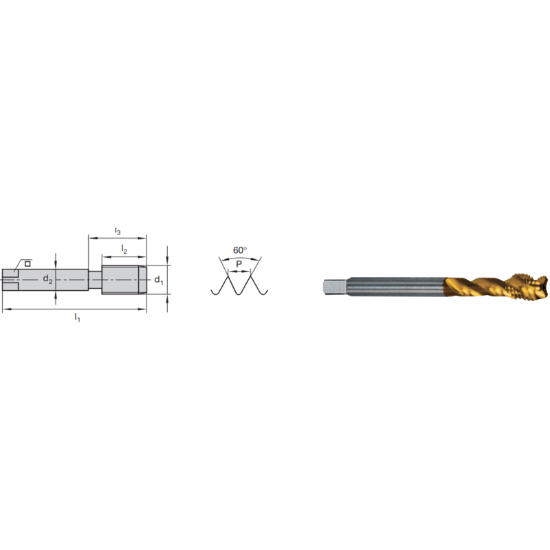

Picture of LMT FETTE 9116578 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9116578 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9116578
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type NF/UNF/UNEF
Tap Square 0.3600
Thread Size 5/8"
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
