  • LMT FETTE 9116572 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

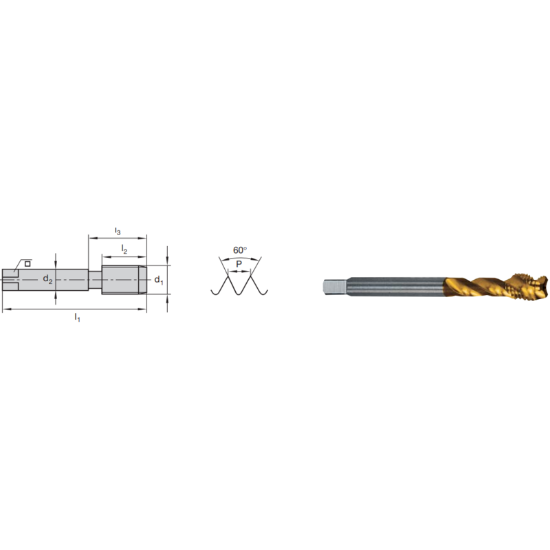

Picture of LMT FETTE 9116572 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9116572 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9116572
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 20.00TPI
Thread Limit 2B/3B
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Type Standard
Tool Material Steel
Overall Len 3.9370 100.00MM
Thread Type NF/UNF/UNEF
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Flutes/Inserts 3
Thread Size 7/16"
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
