  • LMT FETTE 9116570 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

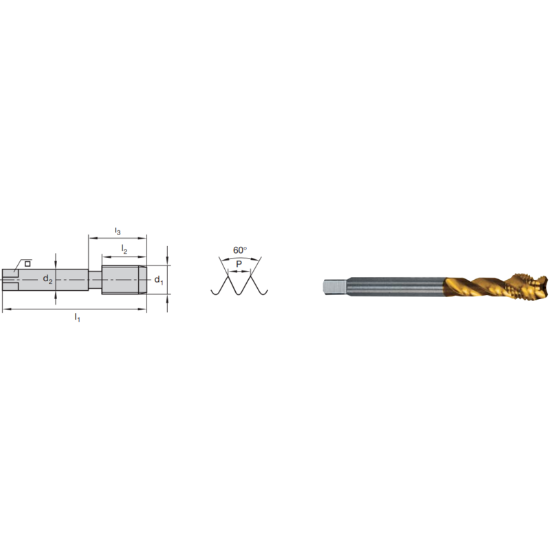

Picture of LMT FETTE 9116570 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9116570 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9116570
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Flutes/Inserts 3
Thread Size 3/8"
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Flute Direction R - Right
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
