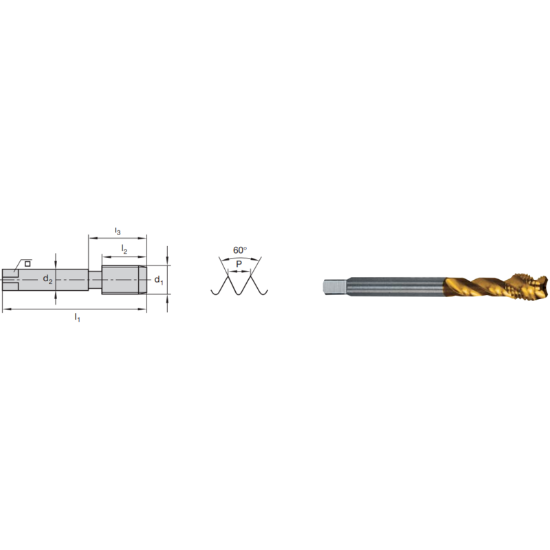

Picture of LMT FETTE 9116569 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9116569 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9116569
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 16.00TPI
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Flutes/Inserts 3
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Medical Yes
