  • LMT FETTE 9116566 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

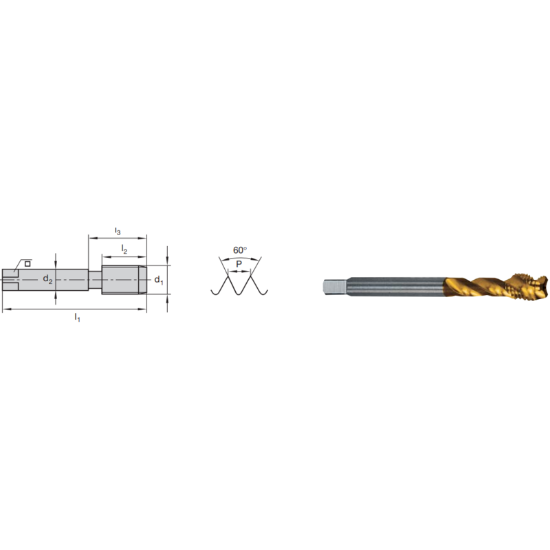

Picture of LMT FETTE 9116566 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9116566 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9116566
Delivery date: 3-5 days
$53.46

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Type NF/UNF/UNEF
Flute Direction R - Right
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Type Standard
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 1/4"
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Thread Pitch 28.00TPI
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
