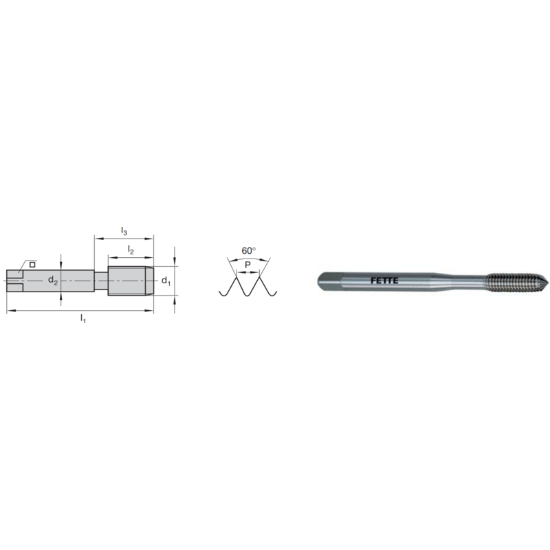

LMT FETTE 2423947 No.10-32.00TPI Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT2423947
Delivery date: 3-5 days
$185.46

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Thread Limit 2B
Tap Square 0.1520
Overall Len 2.7560 70.00MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
Multi Spindle Yes
Agricultural YES
