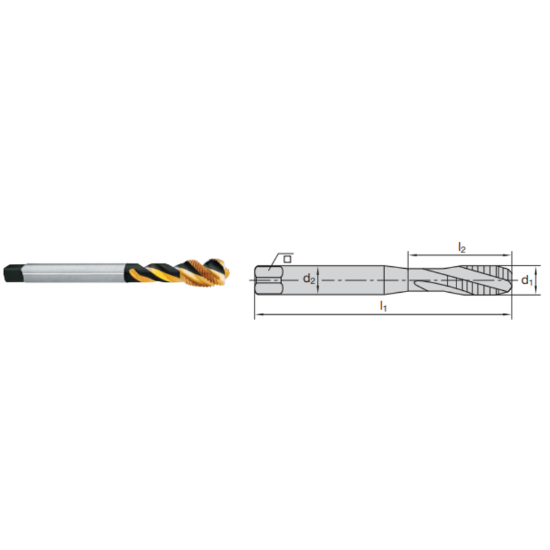

Picture of LMT FETTE 1402557 M14-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1402557 M14-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1402557
Delivery date: 3-5 days
$79.01

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Shank/Pilot Dia 0.4330 11.00MM
Thread Type Metric
Thread Size M14
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Pitch 1.50MM
Tool Material Steel
Thread Limit 6H
Flutes/Inserts 4
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Tap Square 0.3540
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
