  • LMT FETTE 1402555 M12-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

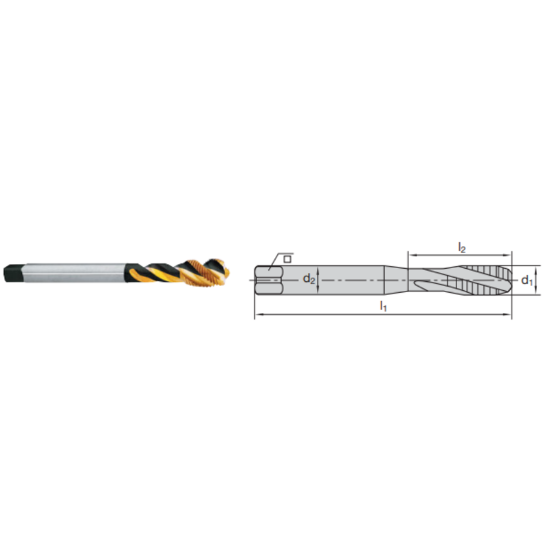

Picture of LMT FETTE 1402555 M12-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1402555 M12-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1402555
Delivery date: 3-5 days
$67.10

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Size M12
Dimension Standard DIN/DIN
Thread Type Metric
Tool Material Steel
Overall Len 3.9370 100.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.25MM
Shank/Pilot Dia 0.3540 8.99MM
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tap Square 0.2760
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Medical Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
