  • LMT FETTE 1402552 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

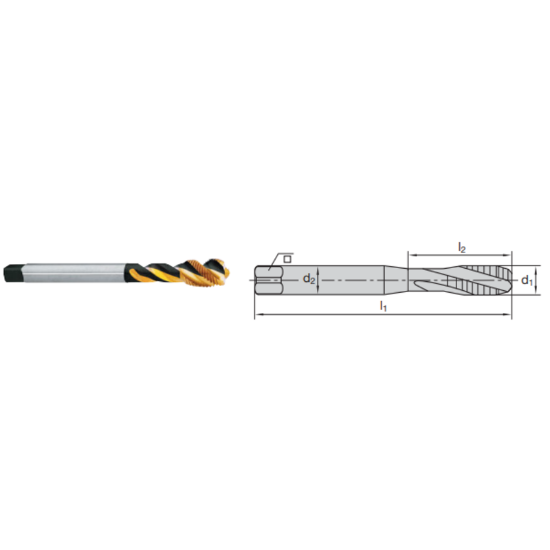

Picture of LMT FETTE 1402552 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1402552 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1402552
Delivery date: 3-5 days
$51.61

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.2760 7.01MM
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Tap Square 0.2170
Tap Chamfer 2.0P-3.0P
Thread Size M10
Thread Limit 6H
Drill Range 0.3528 8.96MM - 0.3630 9.22MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type Metric
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
