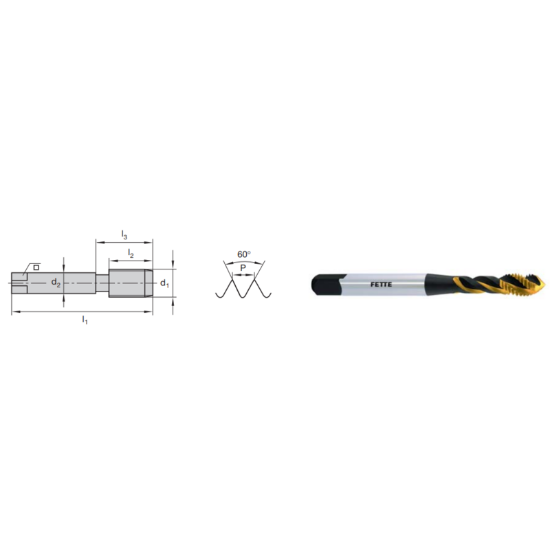

Picture of LMT FETTE 1402549 M4-0.70MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1402549 M4-0.70MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1402549
Delivery date: 3-5 days
$43.41

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Size M4
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tap Type Mod Bottom
Tool Material Steel
Flute Direction R - Right
Shank/Pilot Dia 0.1770 4.50MM - #16
Length Type Standard
Thread Type Metric
Thread Pitch 0.70MM
Tap Square 0.1340
Overall Len 2.4800 62.99MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
