  • LMT FETTE 1402546 M24-3.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

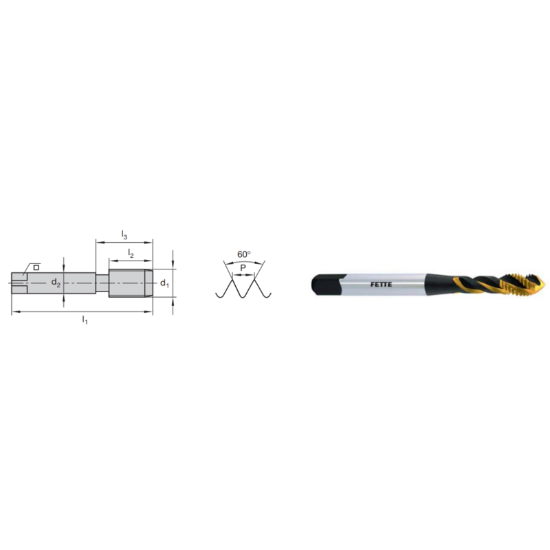

Picture of LMT FETTE 1402546 M24-3.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1402546 M24-3.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1402546
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Performance Rating High Performance
Coating TiCN +
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Tap Type Mod Bottom
Thread Limit 6H
Tap Square 0.5710
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Flutes/Inserts 4
Drill Range 0.8220 20.88MM - 0.8528 21.66MM
Tool Material Steel
Shank/Pilot Dia 0.7090 18.01MM
Thread Size M24
Thread Pitch 3.00MM
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
