  • LMT FETTE 1401495 3/8-24.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

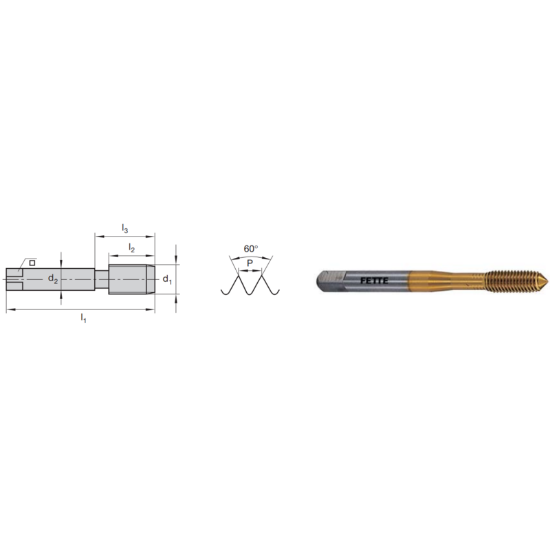

Picture of LMT FETTE 1401495 3/8-24.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401495 3/8-24.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401495
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Made In USA No
Coating TiCN +
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Drill Range 0.3535 8.98MM - 0.3591 9.12MM
Thread Size 3/8"
Thread Limit 2B/3B
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tap Style Roll Form
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
Medical Yes
