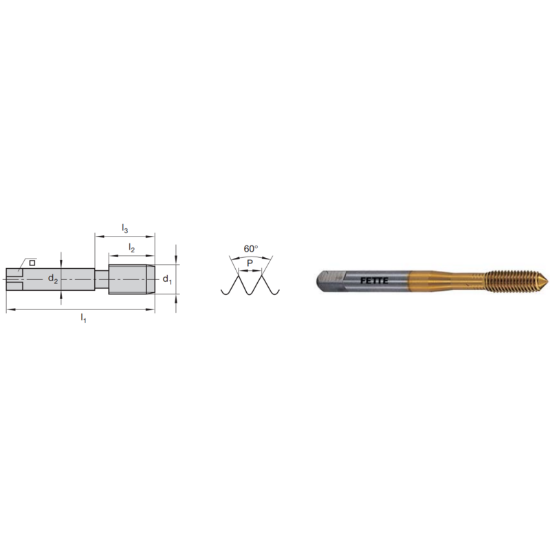

Picture of LMT FETTE 1401491 5/8-11.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401491 5/8-11.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401491
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 5/8"
Tool Material Steel
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Tap Style Roll Form
Overall Len 4.3310 110.01MM
Tap Square 0.3600
Thread Pitch 11.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 2.0P-3.0P
Drill Range 0.5783 14.69MM - 0.5909 15.01MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Medical Yes
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Agricultural YES
Energy Yes
