  • LMT FETTE 1401477 5/8-18.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

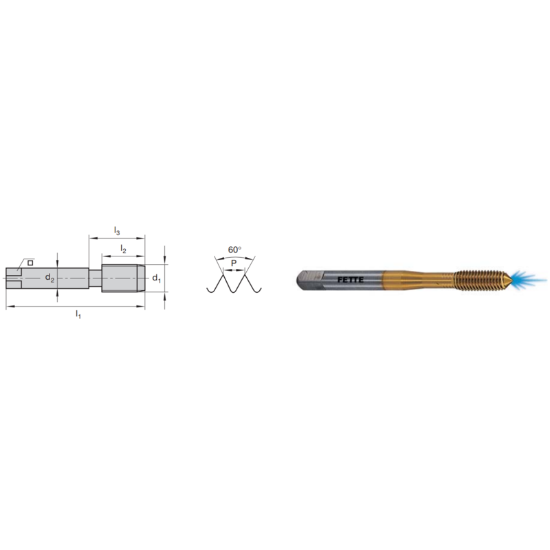

Picture of LMT FETTE 1401477 5/8-18.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401477 5/8-18.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401477
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Shipping State Illinois
Made In USA No
Coating TiCN +
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tap Square 0.3600
Tool Material Steel
Overall Len 3.9370 100.00MM
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Thread Pitch 18.00TPI
Thread Limit 2B/3B
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Size 5/8"
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Drill Range 0.5965 15.15MM - 0.6039 15.34MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
