  • LMT FETTE 1401475 7/16-20.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

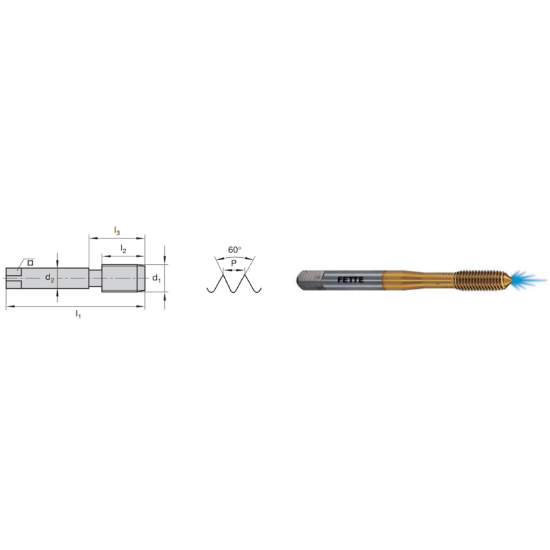

Picture of LMT FETTE 1401475 7/16-20.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401475 7/16-20.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401475
Delivery date: 3-5 days
$119.08

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Type NF/UNF/UNEF
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Tap Square 0.2420
Thread Pitch 20.00TPI
Thread Limit 2B/3B
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Drill Range 0.4118 10.46MM - 0.4185 10.63MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Automotive Yes
Multi Spindle Yes
