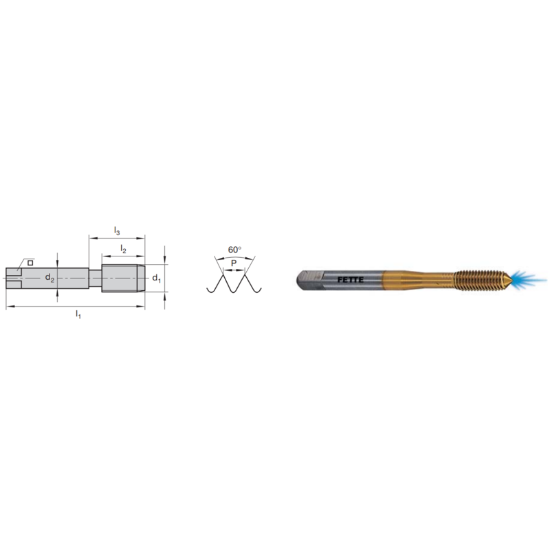

Picture of LMT FETTE 1401473 5/16-24.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401473 5/16-24.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401473
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Roll Form Tapping, Mod Bottom Tapping, Blind Hole Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Drill Range 0.2909 7.39MM - 0.2969 7.54MM
Tap Square 0.2380
Thread Size 5/16"
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 2B/3B
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Medical Yes
Energy Yes
Agricultural YES
