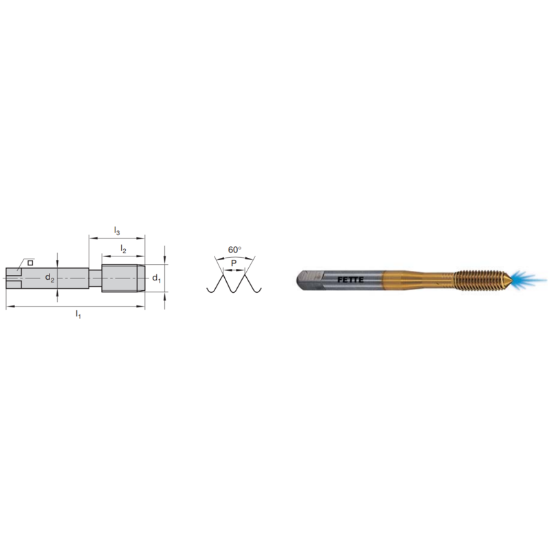

Picture of LMT FETTE 1401470 5/8-11.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401470 5/8-11.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401470
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Overall Len 4.3310 110.01MM
Tap Square 0.3600
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 2.0P-3.0P
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Tap Style Roll Form
Drill Range 0.5783 14.69MM - 0.5909 15.01MM
Thread Size 5/8"
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
Medical Yes
Automotive Yes
