  • LMT FETTE 1401469 1/2-13.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +
Picture of LMT FETTE 1401469 1/2-13.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401469 1/2-13.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401469
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Tapping, Roll Form Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Coating TiCN +
Package Size 1
Made In USA No

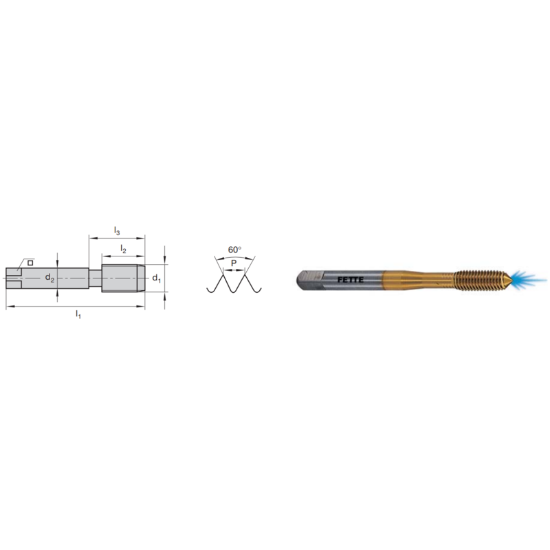

Dimensional Specifications
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 4.3310 110.01MM
Machine Side Connection Type Tap Collet
Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Tap Type Mod Bottom
Thread Size 1/2"
Tool Material Steel
Thread Pitch 13.00TPI
Thread Limit 2B/3B
Tap Chamfer 2.0P-3.0P
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Tap Style Roll Form
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
