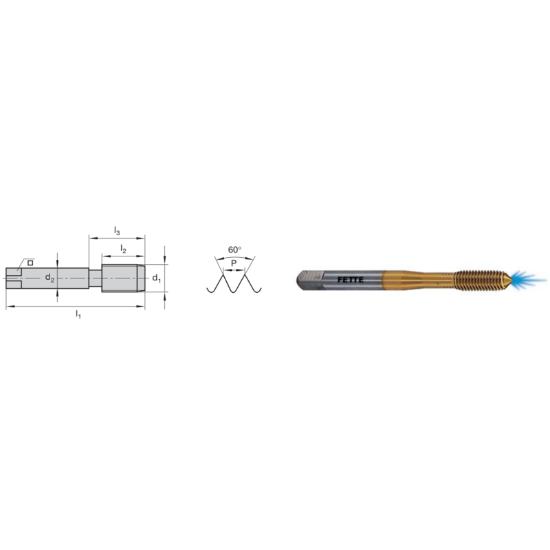

Picture of LMT FETTE 1401468 7/16-14.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401468 7/16-14.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401468
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Pitch 14.00TPI
Tool Material Steel
Tap Square 0.2420
Thread Size 7/16"
Drill Range 0.4008 10.18MM - 0.4106 10.43MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
