  • LMT FETTE 1401463 M12-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

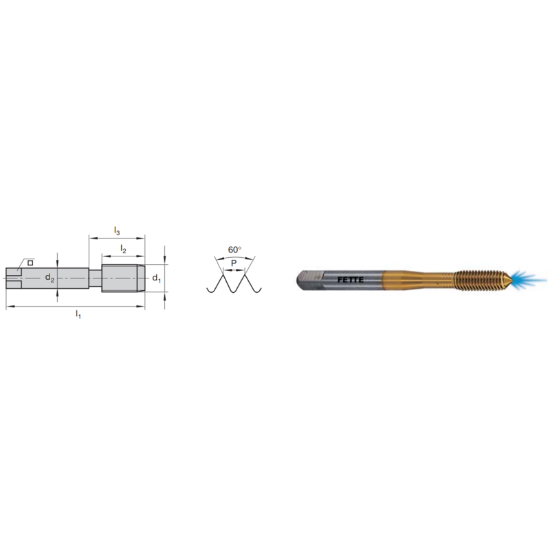

Picture of LMT FETTE 1401463 M12-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401463 M12-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401463
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Thread Type Metric
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Limit 6H
Tap Type Mod Bottom
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Overall Len 3.9370 100.00MM
Drill Range 0.4524 11.49MM - 0.4579 11.63MM
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Tap Square 0.2760
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Multi Spindle Yes
