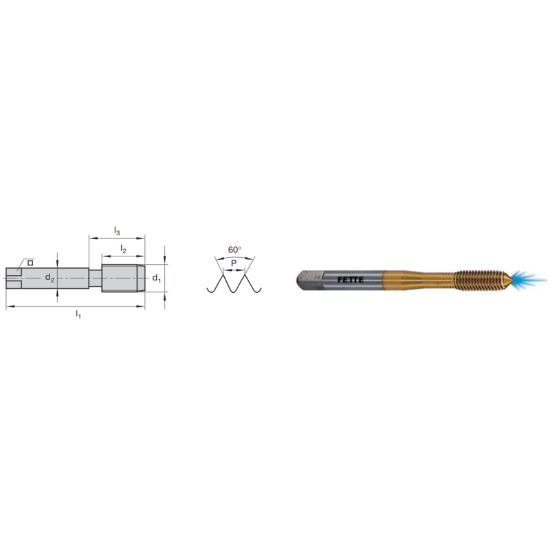

Picture of LMT FETTE 1401461 M10-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401461 M10-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401461
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Tap Square 0.2170
Length Type Standard
Tap Style Roll Form
Thread Size M10
Dimension Standard DIN/DIN
Tool Material Steel
Overall Len 3.9370 100.00MM
Drill Range 0.3685 9.36MM - 0.3752 9.53MM
Thread Pitch 1.25MM
Shank/Pilot Dia 0.2760 7.01MM
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Medical Yes
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Agricultural YES
Energy Yes
