  • LMT FETTE 1401460 M8-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

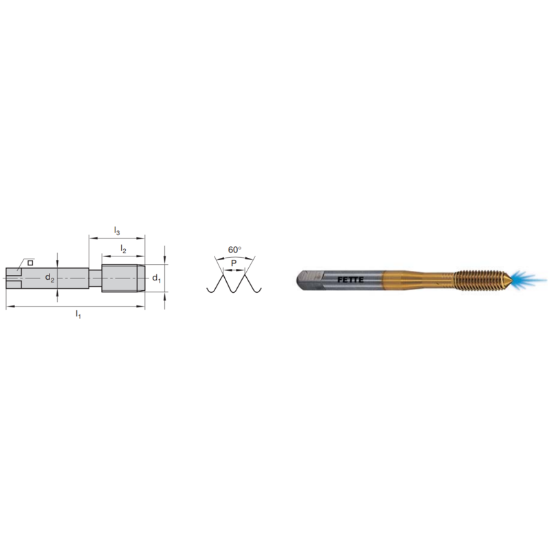

Picture of LMT FETTE 1401460 M8-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401460 M8-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401460
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Tap Square 0.2170
Length Type Standard
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.2760 7.01MM
Overall Len 3.5430 89.99MM
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M8
Thread Type Metric
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
Agricultural YES
